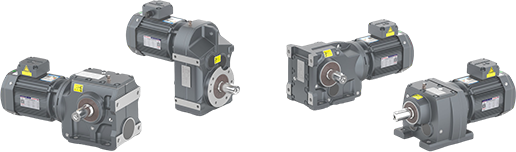

WXK Helical Bevel Gear Motor

Wide power range: 0.12-200kW
Sufficient power, high efficiency and low noise
Wide application, easy operation and flexible installation
High performance, high load resistance

Power	0.12-200kW
Voltage	Single phase 110V/220V, 3 phase 220V/380V/415V/440V/660V/690V (Customizable)
Frequency	50/60Hz
Efficiency	IE2，IE3，IE4，IE5
Insulation level	F (155℃)
Protection grade	IP55
Lubrication	Synthetic oil, mineral oil
Gearbox size	37,47,57,67,77,87,97,107,127,157,167,187

Features

Strong Versatility

Wide range of ratio and power
20CrMnTi Gear+Carburizing

Strong carrying capacity, low noise and long service life
HT200/HT250 Gearbox

Good rigidity and high compressive strength
Synthetic Oil

High/low temperature resistance, long service life

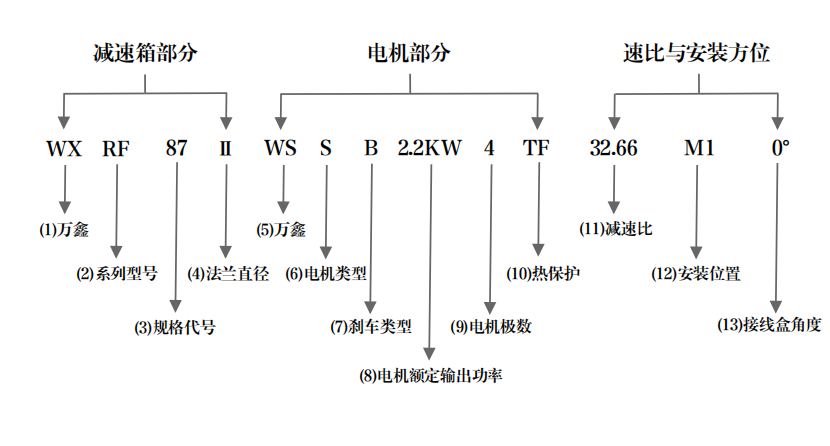

WXK Common Models

K...	Foot mounted
KA...B	Foot mounted with hollow shaft
KH...B	Foot mounted with hollow shaft and shrink disk
KV...B	Foot mounted with splined hollow shaft
KF...	B5 flange mounted
KAF...	B5 flange mounted with hollow shaft
KHF...	B5 flange mounted with hollow shaft and shrink disk
KVF...	B5 flange mounted with splined hollow shaft
KA...	Hollow shaft mounted
KH...	Hollow shaft with shrink disk
KV...	Splined hollow shaft mounted
KAZ...	B14 flange mounted with hollow shaft
KHZ...	B14 flange mounted with hollow shaft and shrink disk
KVZ...	B14 flange mounted with splined hollow shaft
K...AD	Solid shaft input
K...AM	IEC/AM flange input

Prouduct Advantage

1. Both motor and gearbox are produced by ourselves. Motor power is sufficient, with low temperature rise.

2. Short lead time.

3. Fully equipped with motors, connecting flanges, torque arms, shrink disks, and various types of combination options.

4. 20CrMnTi gear with carburizing technology, effectively improves the bearing capacity of the gear. Gears and gear shafts adopt grinding and cultivation technology, lowering gear operating noise.

5. The output shaft adopts 40Cr+quenching and tempering high-frequency treatment, and the oil seal position adopts radial grinding to improve wear resistance and reduce the risk of oil leakage.
