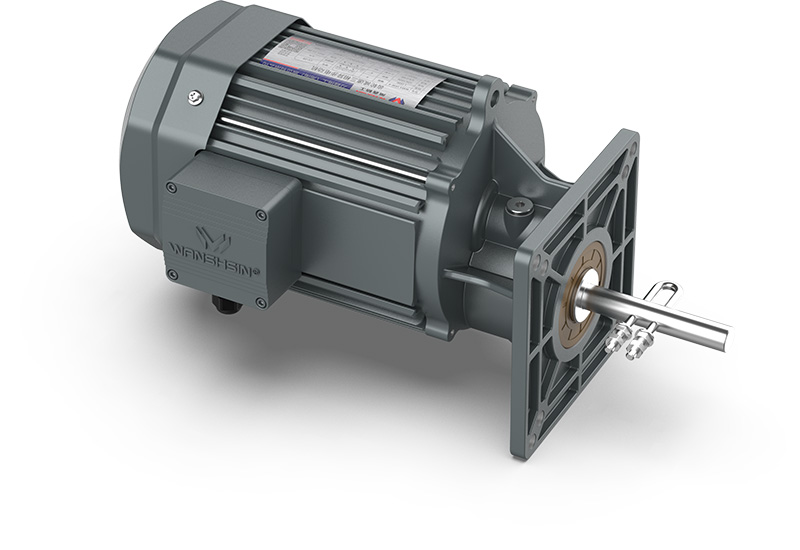

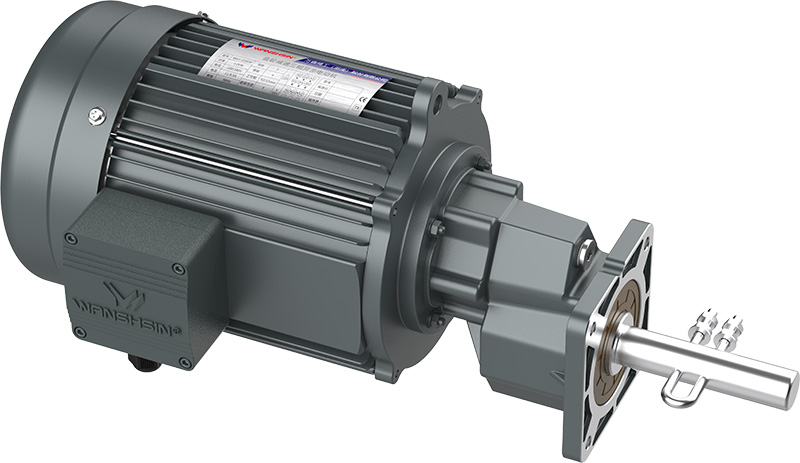

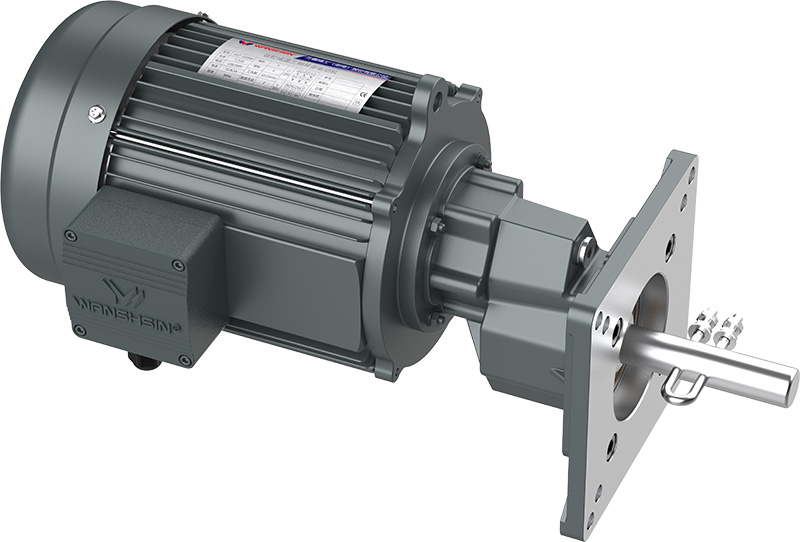

Poultry Farm Feeding Gear Motor

Strong load-bearing, using high-strength die-casting aluminum alloy shell and carburized hardness HRC62 gears.
Low noise, exquisite design, precision manufacturing, the noise is less than 65dB(A).
Maintenance-free, the whole machine is compact, the reducer is lubricated with grease, life-long maintenance-free.

Power	0.55~1.5kW
Voltage	220V-600V
Current	1.39/0.8A
Frequency	50/60Hz
Motor speed	1420/1730RPM
Phases	Singel Phase/Three Phase
Poles	4 Poles
Working duty	Standard S1
Insulation class	F
Protection class	IP55
Ratio	3,4,5
Output shaft diameter	19-25mm (Support customization)

Product Features

1

Small size
2

Light weight
3

Low noise
4

Maintenance free
5

Corrosion resistant

Performance Parameter

Parameters of motor
POWER	POWER TYPE	CURRENT		STARTING CAPACITOR	RUNNING CAPACITOR
550W 3/4HP	Three-phase	220V/2.6A	380V/1.8A	300μF	30μF
	Single-phase	110V/7.6A	220V/3.8A
750W 1HP	Three-phase	220V/3.6A	380V/2.1A	400μF	40μF
	Single-phase	110V/9.0A	220V/4.5A
1100W 1.5HP	Three-phase	220V/3.8A	380V/2.2A	300μF	40μF
	Single-phase	110V/11.0A	220V/6.0A
1500W 2HP	Three-phase	220V/6.8A	380V/4.0A	400μF	40μF
	Single-phase	110V/20.0A	220V/10.0A

New

AC Gear Motor Catalog.
